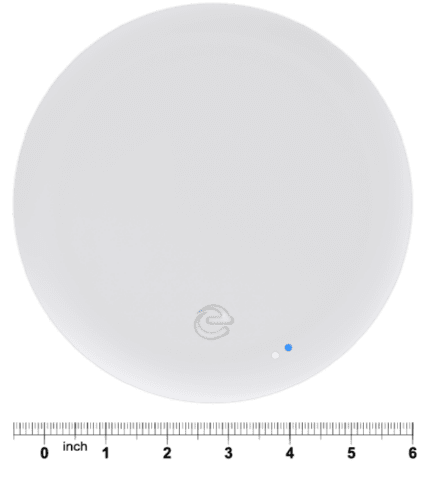

1W Energous PowerBridge for Wiliot IoT Pixels


The 1W Energous PowerBridge is a cost-effective and easy to deploy device that energizes Wiliot IoT Pixels.

It is a low-profile and lightweight integrated system designed for easy installation on both ceilings and walls to facilitate large coverage areas. Additionally, the 1W Energous PowerBridge scans for Wiliot IoT Pixel beacons and can intelligently re-broadcast them to ensure all beacons are captured and passed to the Gateway device.
The 1W Energous PowerBridge is designed around Energous’ EN4100 and EN3210 devices. The EN4100 is a highly integrated System-on-Chip (SoC) RF transmitter IC and the EN3210 is a 1.4W, high-efficiency, CMOS power amplifier (PA).
Key Applications of Wiliot IoT Pixels include, but are not limited to:

  • Inventory Managment
  • Asset Tracking and RTLS
  • IoT sensing: Temperature/Humidity monitoring
  • Loss Prevention
Energous 1 W Powerbridge Wiliot Dev Kit

Key Features


  • Works with Wiliot®
    • Up to +20dBm 2.4GHz energizing signal
    • 2.4GHz clock calibration beacons
    • BLE beacon filter and repeater functionality
  • Up to +30 dBm 918MHz energizing signal
  • Circular Polarized Sub-1GHz and 2.4GHz antennas
  • 5V Operation
